Plasma technology has opened up transformative possibilities across multiple industries, from healthcare to electronics.
Among its many types, atmospheric cold plasma stands out for its versatility and accessibility, allowing users to harness plasma’s powerful properties without the constraints of vacuum chambers or high temperatures.
In this article, we’ll explore what atmospheric cold plasma is, how it’s generated, where it’s used, and why it’s becoming an essential tool in today’s high-tech applications.
Definition and characteristics: What is atmospheric cold plasma?
Atmospheric cold plasma, also known as non-thermal plasma, is a partially ionized gas that operates at or near room temperature.
Unlike thermal plasmas, which are often extremely hot, atmospheric cold plasma generates charged particles without high heat, making it suitable for a range of sensitive applications. Operating at atmospheric pressure, it doesn’t require the vacuum environment necessary for other types of plasma, which greatly simplifies its use and expands its applicability.
This form of plasma is unique due to its low temperature and the presence of various reactive species like ions, electrons, and neutral atoms.
These properties enable it to interact with materials on a molecular level, effectively cleaning, activating, or even sterilizing surfaces without causing thermal damage.
This characteristic makes atmospheric cold plasma highly advantageous for sectors that handle heat-sensitive materials.
Production and mechanisms: How is atmospheric cold plasma created?
Creating atmospheric cold plasma involves generating a discharge that ionizes gas in a non-vacuum environment.
Here’s a look at the basic production process and the necessary equipment.
Gas and Power Source
To generate atmospheric cold plasma, gases such as air, nitrogen, or argon are typically used. An electrical power source is then applied to the gas to create a discharge.
This discharge can be driven by various methods, including dielectric barrier discharge (DBD) and corona discharge.
Discharge mechanisms
There are two types of discharge mechanisms that can be used when creating atmospheric cold plasma:
Dielectric barrier discharge (DBD) - In this setup, electrodes are separated by a dielectric material, which regulates the discharge and allows for stable plasma generation. This is commonly used in applications where a uniform plasma is needed over larger areas.
Corona discharge - Corona discharge operates at high voltages and is particularly effective for treating irregular surfaces. This method allows cold plasma to reach into crevices, which is beneficial for cleaning and activating uneven surfaces.
Control of Plasma Parameters
The properties of the plasma, such as density and energy, can be adjusted by modifying the electrical power and the type of gas used.
This flexibility enables precise control over the plasma's effects, making it suitable for a variety of applications, from delicate medical instruments to industrial manufacturing.
Common applications of atmospheric cold plasma
Atmospheric cold plasma has proven valuable in applications requiring surface treatment, sterilization, and activation, offering advantages in sectors such as healthcare, electronics, and packaging.
Below are some key applications.
Surface Cleaning
Cold plasma is highly effective at removing organic and inorganic contaminants from surfaces. It breaks down and removes oils, dust, and residues without the use of harsh chemicals, providing a cleaner and eco-friendly alternative to traditional methods.
This application is particularly beneficial in electronics, where delicate components require precise, residue-free surfaces.
Surface Activation
In the manufacturing sector, surface activation with atmospheric cold plasma prepares materials like polymers and metals for improved adhesion with coatings, adhesives, or other materials.
By enhancing the surface energy, it allows for stronger bonding, which is vital in industries like automotive manufacturing and medical device production.
Sterilization
One of the most significant applications of atmospheric cold plasma is its ability to sterilize surfaces effectively. The reactive species generated during plasma production can disrupt the cell walls of bacteria, fungi, and viruses, rendering them inactive.
This is particularly valuable in healthcare settings, where equipment and surfaces must be kept sterile without using heat or toxic chemicals.
Medical Applications
Besides sterilization, atmospheric cold plasma has promising potential in medical treatments, such as wound healing and dental care.
It can help disinfect wounds, promote tissue regeneration, and reduce biofilms on medical implants.
Its non-invasive nature and low temperature make it safe for direct contact with tissues.

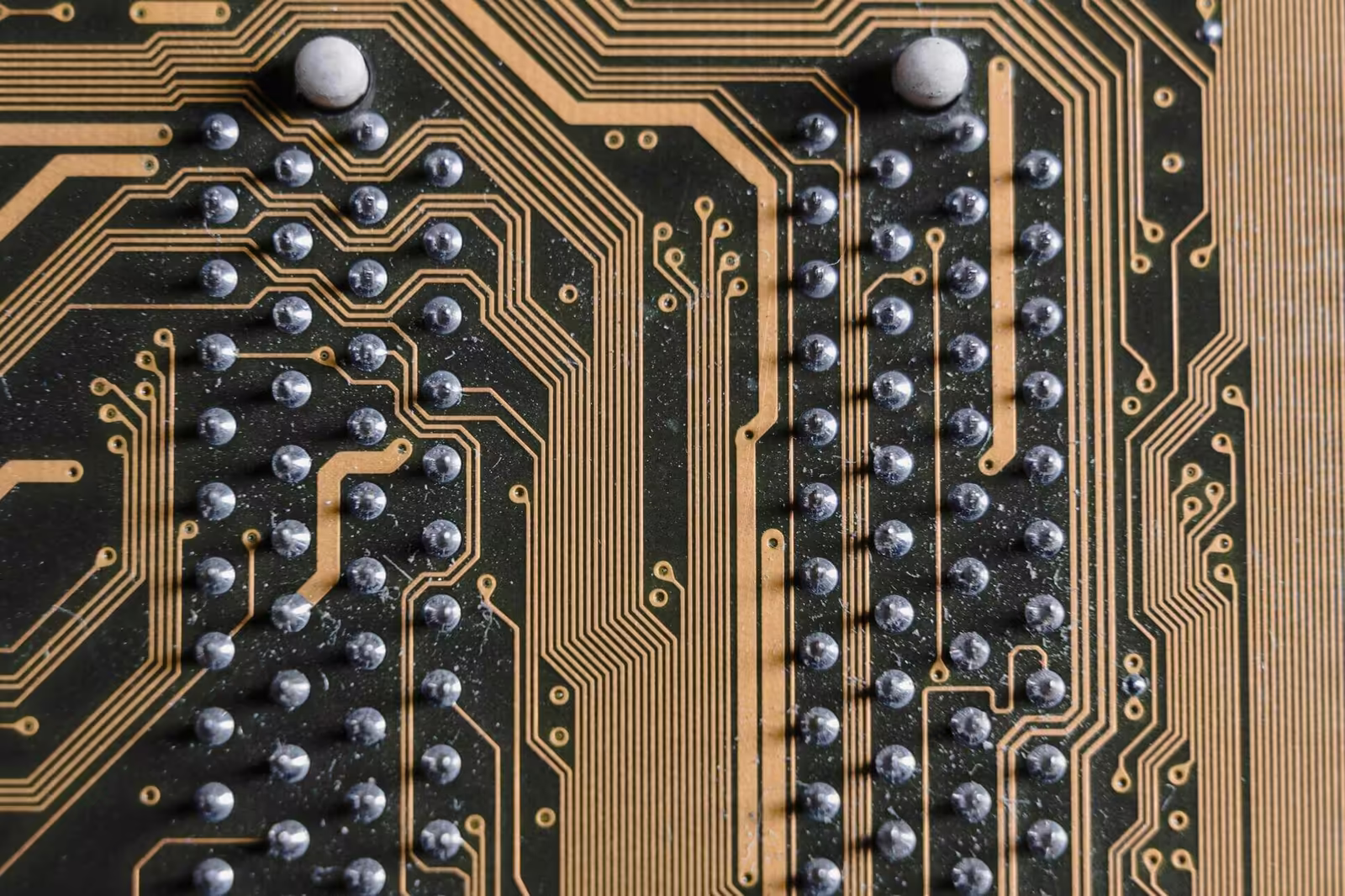

Electronics Manufacturing
In electronics, plasma is used for surface modification and fine-tuning component characteristics. Cold plasma cleaning ensures that sensitive microelectronic components remain free of contaminants that could hinder performance. It’s also used to prepare surfaces for soldering or bonding, enhancing durability and precision in electronic devices.
Advantages and limitations of atmospheric cold plasma
Atmospheric cold plasma has gained popularity thanks to its unique set of benefits:
No vacuum requirement - Unlike other plasma processes, atmospheric cold plasma does not need a vacuum environment, making it highly accessible for both laboratory and on-site applications. This allows for faster and more flexible treatment processes.
Room-temperature operation - Operating at or near room temperature, atmospheric cold plasma is safe for heat-sensitive materials, expanding its use to delicate polymers, fabrics, and even living tissues
Chemical-free process - Cold plasma treatments do not require the use of chemicals, providing an environmentally friendly alternative to traditional cleaning and sterilization methods.
Versatility across surfaces - Atmospheric cold plasma can treat various materials, including polymers, metals, glass, and textiles, making it versatile for diverse industry needs.
However, there are also several drawbacks that must be addressed:
Equipment costs - Although atmospheric cold plasma equipment is more accessible than vacuum plasma systems, initial setup costs can still be high, especially for industrial-scale systems.
Limited penetration - Atmospheric cold plasma’s effects are primarily surface-based, which means it is not suitable for applications requiring deep material penetration.
Controlled environment needed for consistency - While not requiring a vacuum, plasma generation still requires controlled conditions for uniformity. Variations in temperature, humidity, and other environmental factors can affect plasma consistency.
Despite these limitations, the benefits of atmospheric cold plasma make it a highly efficient tool for surface treatment and sterilization, especially when working with sensitive materials.
Safety and environmental impact of atmospheric cold plasma
As with any powerful technology, safety considerations are essential when working with atmospheric cold plasma.
Fortunately, its low-temperature and chemical-free properties reduce the potential for environmental and health risks.
Plasma systems should be adequately shielded to prevent accidental exposure, as the reactive species in plasma can irritate skin and mucous membranes.
\Proper training in operating plasma equipment is also crucial to ensure safe and efficient use. Staff should be aware of potential electrical hazards and proper handling of the plasma generator.
Some plasma treatments generate ozone as a byproduct, which can be harmful at high levels. Adequate ventilation is necessary to prevent ozone buildup in enclosed spaces.
Overall, Atmospheric cold plasma is an eco-friendly alternative to traditional cleaning and sterilization methods that often rely on harsh chemicals. It requires no hazardous waste disposal and is energy-efficient, especially when applied at room temperature.
This makes it ideal for companies seeking sustainable solutions, as it reduces both chemical waste and environmental pollution.
Conclusion
Atmospheric cold plasma has emerged as a versatile and effective tool for industries that require surface cleaning, activation, and sterilization without the constraints of high temperatures or vacuum systems.
With its unique ability to treat heat-sensitive materials in a safe, controlled manner, it’s becoming invaluable in fields like healthcare, electronics, and manufacturing. Despite initial setup costs and a few limitations, atmospheric cold plasma offers an eco-friendly and efficient solution that can be tailored to a wide range of applications.
